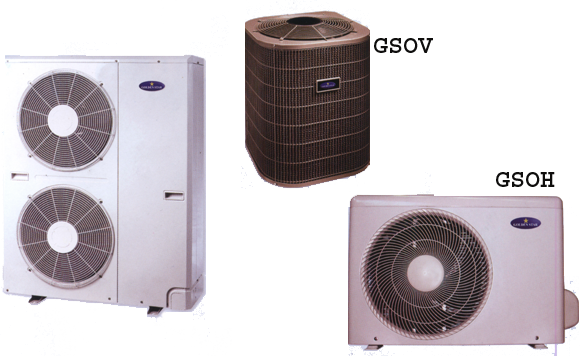

Condenser Units

Specifications
Model
GSOV/GSOH
18
24
30
36
36
48
60
90
120
POWER SUPPLY
V/PH/HZ
220-240/1/50**
380-415/3/50
COOLING CAPACITY
BTU/HR
18250
25200
30650
36650
36125
48200
60600
90850
121000

OPERATINGCURRENT
COOL/HEAT
AMPS*
9.5/10.3
12.8/13.3
14.5/15.1
16.3/17
4.9/6.1
7.2/8.5
9.7/10.5
14.5/15.3
16.4/17/5
FAN MOTOR
QTY/HP
1X1/8
1X1/8
1X1/4
2X1/8
2X1/8
2X1/4
2X1/4
4X1/4
4X1/4
CONDENSOR COIL
TYPE
COPPER COIL/ALUMINIUM FINS
COMPRESSOR
TYPE
ROTARY/RECIPROCATING
RECIPROCATING/SCROLL
SCROLL
REFRIGERENT
TYPE
R-22
SUCTION LINE
INCH
1/2
5/8
5/8
3/4
3/4
7/8
7/8
13/8
15/8
LIQUIRD LINE
INCH
1/4
3/8
3/8
3/8
3/8
3/8
3/8
1/2
5/8
USABLE OUTDOOR AMBIENT
DEG.C
52oc

Note : *Values show are most severe and may very slightly depending on compressor models supplied.

**Units for 60Hz are available on order

Model No. GSOV/GSOH 36 unit is also available for 380-415/3/50 on order

The above data and specifications are subject to change without any prior notice for product improvements
