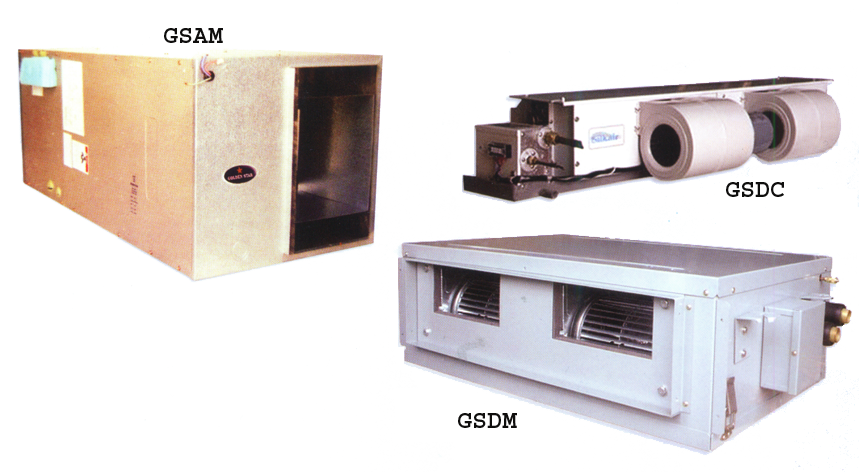

Duct Type (Indoor – Cased / Uncased)

Specifications
Model
GSDC
GSDM
GSAM
24
30
24
30
36
48
60
90
120
24
36
48
60
COOLING CAPACITY
BTU/HR
25200
36650
25200
30650
36650
48200
60600
90850
121000
25200
30650
48200
60600
AIR FLOW
CFM
800
1000
800
1000
1200
1600
2000
3500
4000
825
1130
1625
1890
POWER SUPPLY
V/PH/HZ
220-240/1/50--208-230/1/60
380-415/3/50
220-240/1/50*
380-415/3/50
FAN MOTOR INDOOR
WATT
1/10
1/52X2
1/4
1/4
1/3
1/2
1/2
1/2X2
3/4X2
1/5
1/3
1/2
1/2
FAN MOTOR RATED LOAD
AMPS
0.60
1.0
0.60
1.0
1.2
1.8
1.8
3.6
3.6
1.1
1.4
1.8
2.1
COIL
TYPE
SLIT FIN/INNER GROOVED TUBE
FILTER
TYPE
ANTIFUNGAL-WASHABLE

HEIGHT(MM)
260
260
285
355
355
355
355
450
450
500
500
600
600
DIMENSIONS
LENGTH(MM)
1080
1500
900
995
995
995
995
1340
1340
450
500
550
550

DEPTH(MM)
400
400
660
830
830
830
830
850
850
1050
1150
1325
1325
WEIGHT
KG
37
40
40
50
58
62
64
70
75
36
42
46
49
PIPE CONNECTION SIZE
LIQUID/SUCTION(IN)
1/4-1//2
3/8-5/8
3/8-5/8
3/8-5/8
3/8-3/4
3/8-7/8
3/8-7/8
1/2-11/8
1/2-15/8
3/8-5/8
3/8-3/4
3/8-7/8
3/8-7/8
REFRIGERANT
TYPE
R-22
COUPLER TYPE
TYPE
FLARE

Note : * Unit for 60Hz available on order

Model No. GSDM 36 and GSAM 36 units are also available for 380-415/3/50 on order

Air flow rating is based on a static pressure of 0.12WG

The above data and specifications are subject to change without any prior notice for product improvements
